1 SSL-VPN Intro

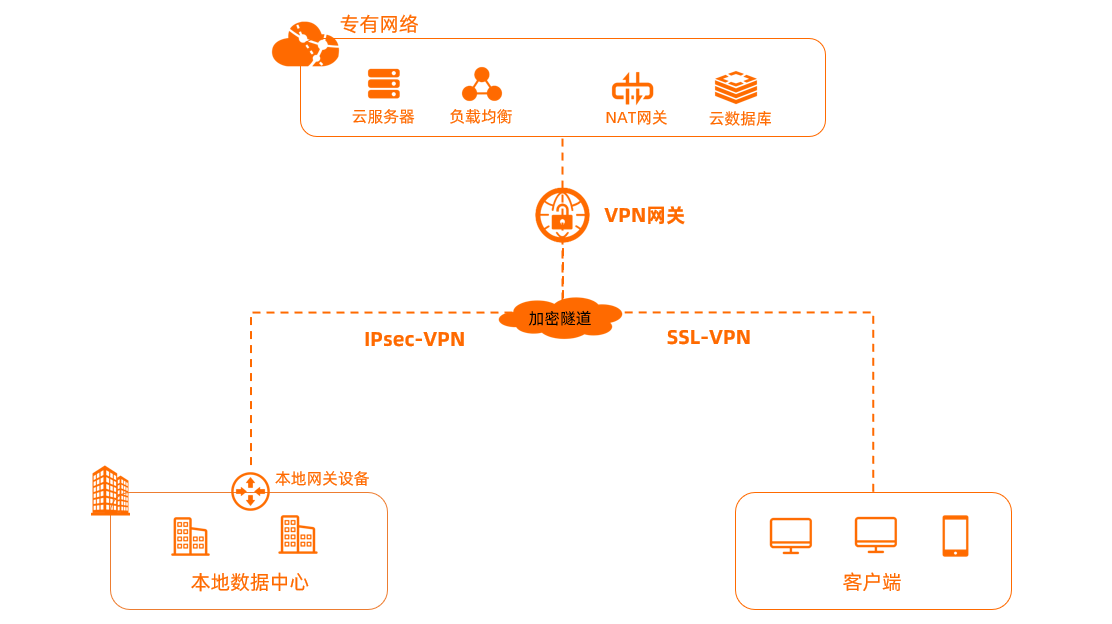

SSL-VPN支持将本地客户端远程接入 VPC/机房内网 ,使客户端可以安全地访问内网中部署的应用或服务器。
SSL-VPN是在 会话层 通过使用HTTPS的方式实现的,而IPsec-VPN是在 网络层 实现的,能够完成传输层TCP和UDP的加密和隧道传输处理
相比IPsec-VPN,SSL-VPN数据吞吐量较低,但其不受限于MTU,也不受操作系统和NIC网卡驱动的限制

应用场景:如公司员工通过SSL-VPN:连接公司内网实现远程办公/访问内网服务器实现本地运维等
2 Fortigate 配置SSL-VPN

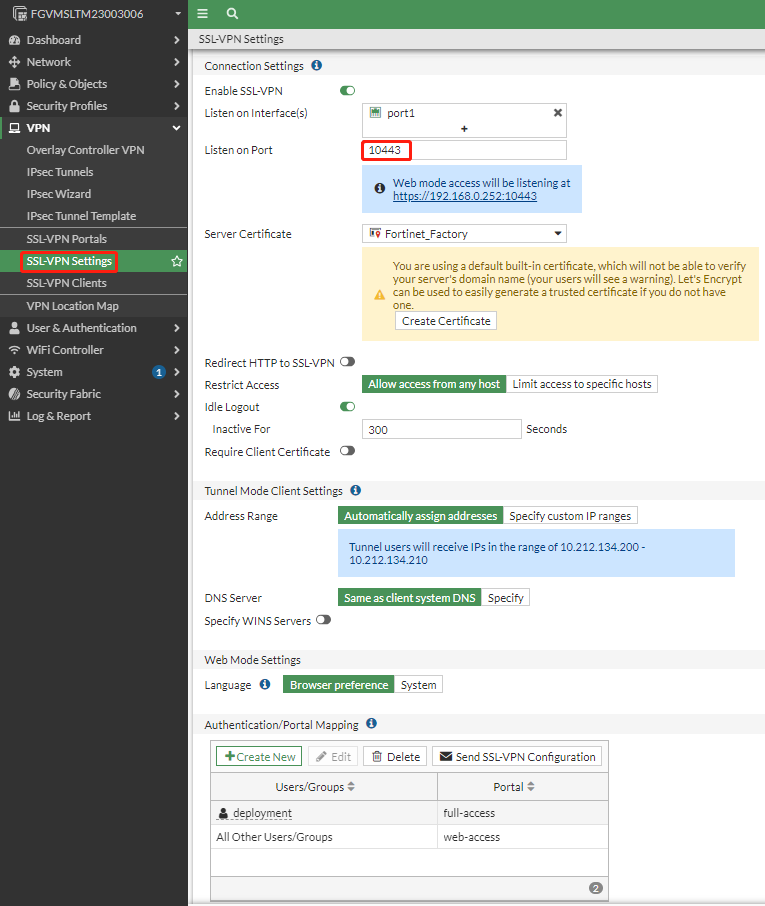

2.1 SSL-VPN Settings Demo
port1:有公网IP的网卡,即WAN口 (Fortigate上的 1 个物理端口对应服务器上的一张网卡)
通常 Fortigate 至少会有两张网卡,一张主网卡有公网IP对应WAN口 Port1,一张辅助网卡只有内网·对应LAN口 Port2
主网卡即用于访问外部互联网,辅助网卡一般用于VPC内网互联

2.2 User Group Setting

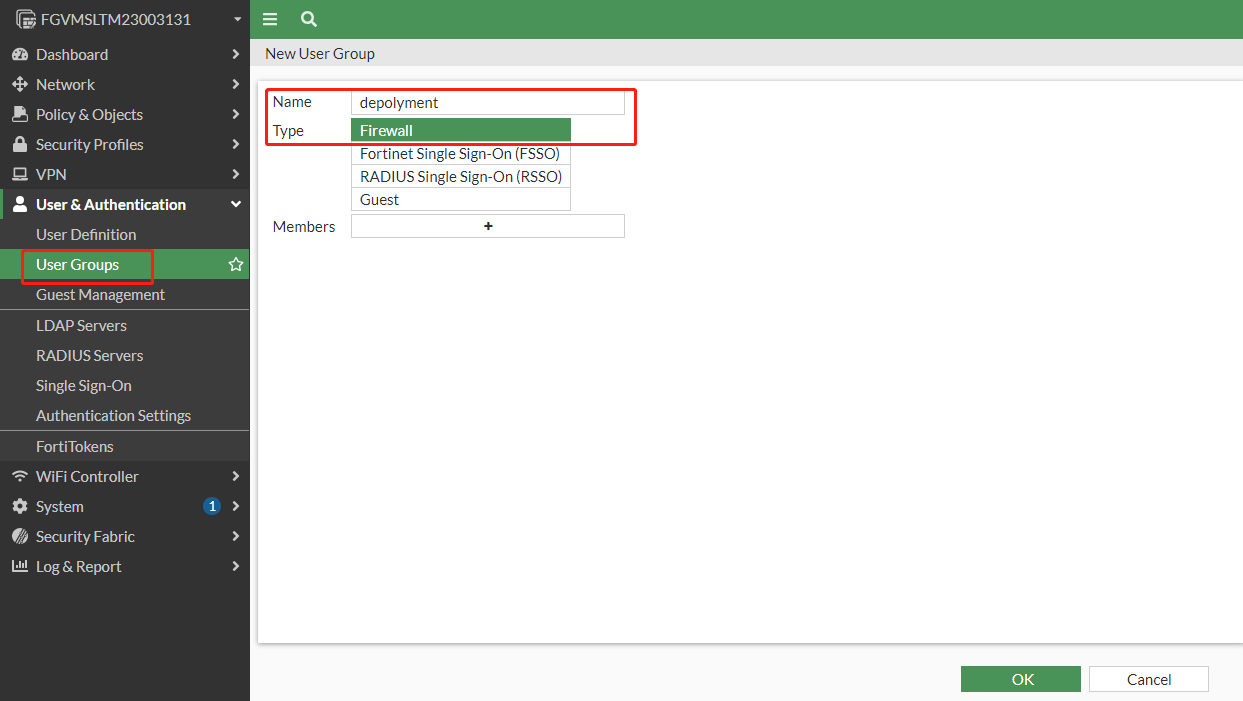

2.2.1 create user group

少量用户可以通过手动添加用户进入用户组, 大量用户则需要通过脚本自动化导入

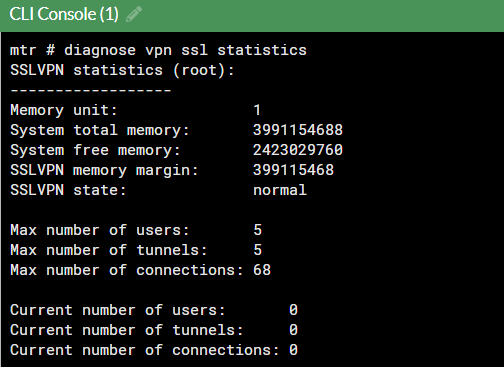

查看 Fortigate 上 SSL-VPN 统计信息:diagnose vpn ssl statistics

这里显示最多 5 个用户 68 个连接其实是错的,不知道官方提供这个这个命令的作用
根据 forti 工单回复如下:
You can look up limits in the Maximum Values list, which nowadays is interactive:
https://docs.fortinet.com/max-value-table
For example, a VM0 has a max. number of interfaces of 4K, and a max. no. of IPsec tunnels of 2000.
For This case , a MSL has a max. number of interfaces of 16K, and a max. no. of IPsec tunnels of 40K
Depending on your VM resources, you might exhaust your cpu/ram/bandwidth way before maxing out the total number of allowed ipsec tunnels.
2.2.2 通过脚本导入大量SSL-VPN用户
- Reference :命令行脚本批量转换工具说明
script as down below:
config user local
edit "<user1_name>"
set type password
set passwd <user1_pwd>
next
edit "<user2_name>"
set type password
set passwd <user2_pwd>
next
.
.
.
end
config user group
edit "SSL_VPN_GROUP"
set member "<user1_name>,<user2_name>......."
next
end

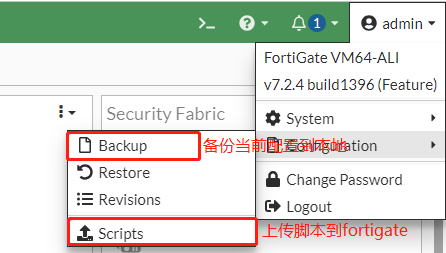

Scripts 功能上传并运行脚本
import re
def write_user(file_path, pair_list) -> None:
"""
写入配置文件。
Args:
file_path: 配置文件路径
pair_list: 用户密码列表
"""
with open(file_path, "w") as f:
f.write("config user local\n")
for pair in pair_list:
f.write(" edit \"{}""\"\n".format(pair['username']))
f.write(" set type password\n")
f.write(" set passwd {}\n".format(pair['password']))
f.write(" next\n")
f.write("end\n")
def write_user_group(file_path, pair_list) -> None:
"""
写入配置文件。
Args:
file_path: 配置文件路径
pair_list: 用户密码列表
"""
with open(file_path, "a") as f:
f.write("\nconfig user local\n")
f.write(" edit \"SSL_VPN_GROUP\"\n")
f.write(" set member ")
f.write("\"")
for i, pair in enumerate(pair_list):
f.write("{}".format(pair['username']))
if i != len(pair_list) - 1:
f.write(",")
f.write("\"")
f.write("\n next\n")
f.write("end\n")
def format_users(data_source_path) -> list:
"""
Reads a text file and formats each line in the following pattern:
"username {password}"
Args:
data_source_path: The path to the origin data.
Returns:
username password KV list
"""
with open(data_source_path, "r") as f:
pattern = r"\s+|,|;" # 过滤其中的空格、逗号和分号
result = []
for line in f:
pair_map = {}
match = re.match(r"^(.+)+([\s*,;])+(.+)$", line) # 两边是任意长度的字符串,中间是任意个空格 逗号或者分号
print("match", match)
if match:
pair_map['username'] = re.sub(pattern, "", str(match.groups()[0]))
pair_map['password'] = re.sub(pattern, "", str(match.groups()[1]))
result.append(pair_map)
print("result length: ", len(result))
return result
if __name__ == "__main__":
read_path = "origin.txt"
res = format_users(read_path)
write_path = "result.txt"
write_user(write_path, res)
write_user_group(write_path, res)
# origin.txt
sunway1, 123456
sunway2, 123456
sunway3, 123456
sunway4, 123456
sunway5, 123456

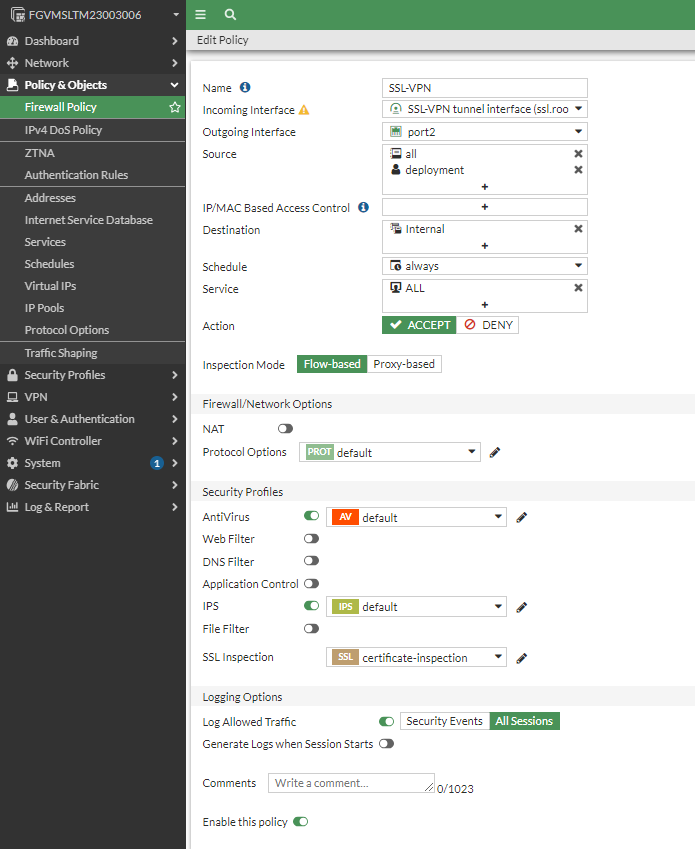

2.3 Create FireWall Policy
- 配置
incoming interface为ssl-vpn tunnel - 配置
outgoing interface为port2(port2是辅助网卡,用于内网互联)
Client ------>
SSL-VPN-Tunnel------->(Fortigate WAN) port1-------->(Fortigate LAN) port2-------> Internal Network

2.4 Testing for Fortigate SSL-VPN
访问
Fortigate Internet ip:10443, 通过ssl vpn中设置好的用户名/密码进行登录如果
Fortigate部署在云服务上,则需要配置安全组放行,Fortigate安全组一般情况下默认全部端口全部协议都放行

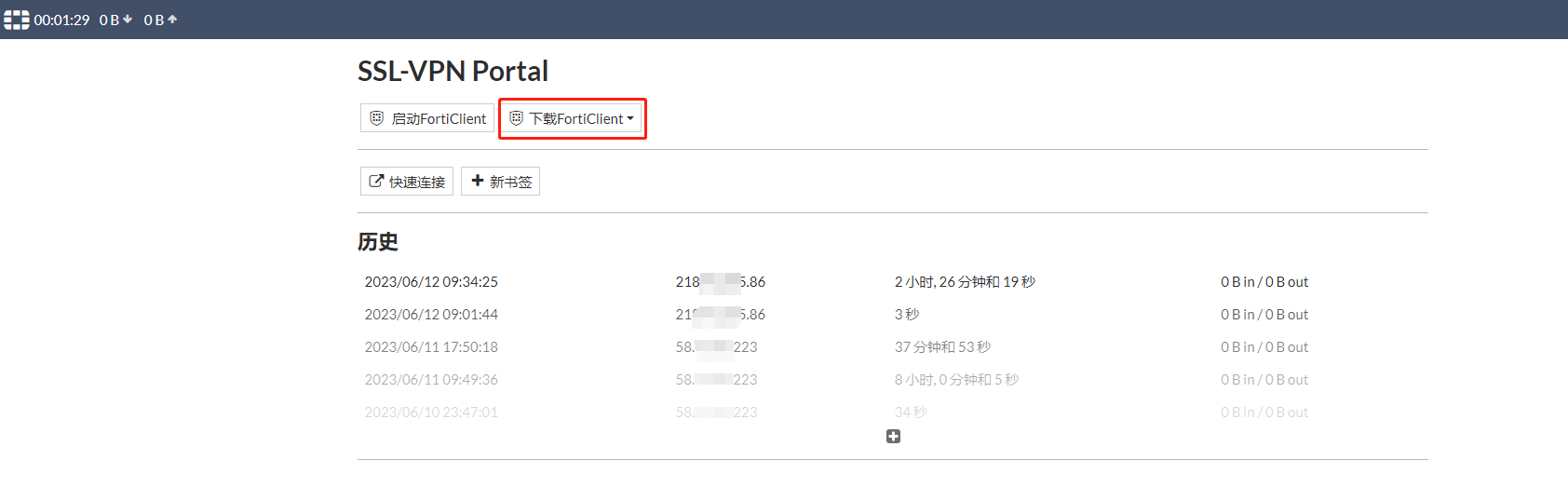

登录后可下载 Forticlient 至本地,使用之前配置的用户名密码连接即可
如果想在登录
SSL-VPN时校验更加安全的手机mobile Token:forti token,可以参考:SSL VPN with FortiToken mobile push authentication
